1. Introduction

If you look around any modern car, you will notice that almost every plastic part, such as the dashboard, or door panel, was made using a plastic injection mould. Automotive injection moulds are the hidden tools behind the smooth surfaces, tight fits, and reliable performance of car parts.

In this article, we will explain what an automotive injection mould is, and how it goes from design to production. This guide will help you understand each step of the process in simple and clear language.

2. What Is an Automotive Injection Mould?

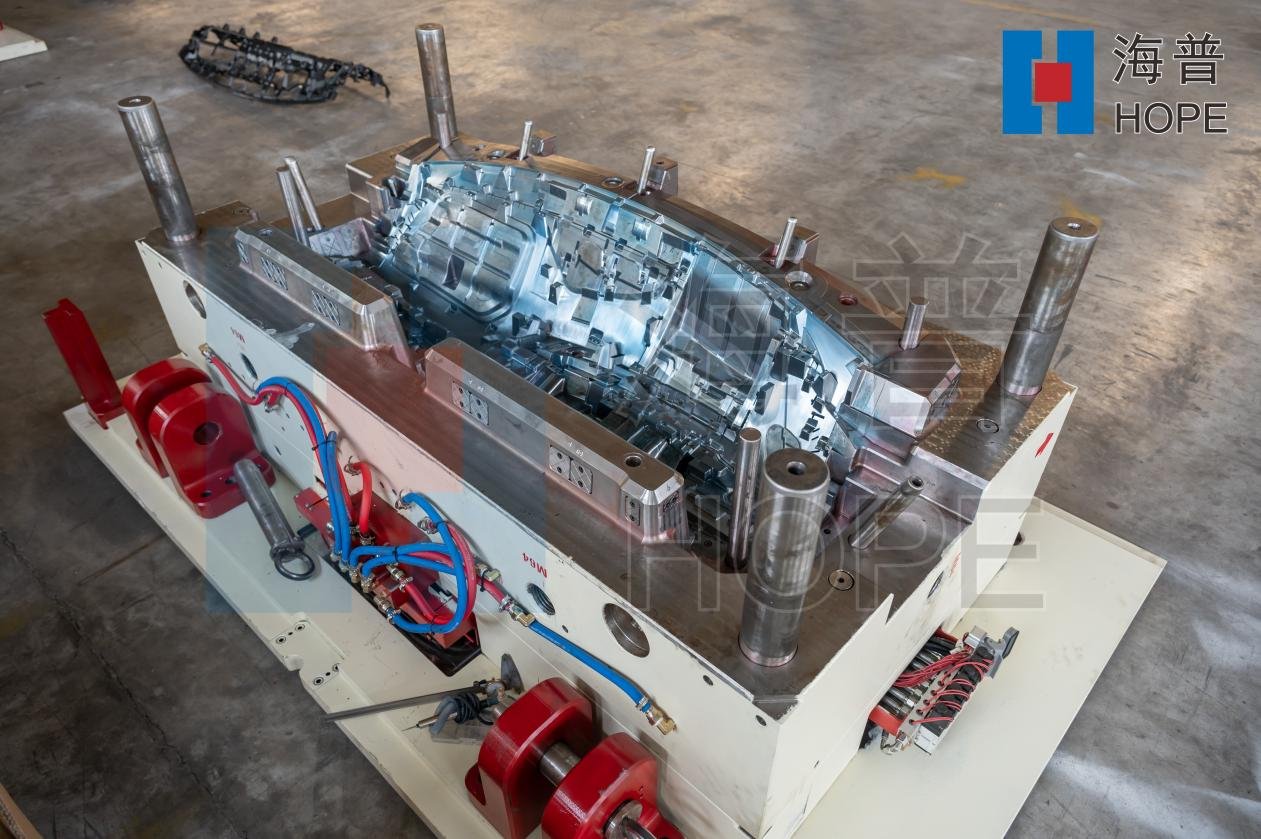

An automotive injection mould is a precision tool used to produce plastic parts for vehicles. It works together with an injection moulding machine.

The process follows three main steps:

1. Plastic pellets are heated until they melt.

2. The melted plastic is injected into a steel mould cavity.

3. After cooling, the part takes the exact shape of the mould and is ejected.

This process is fast, repeatable, and suitable for mass production of parts such as:

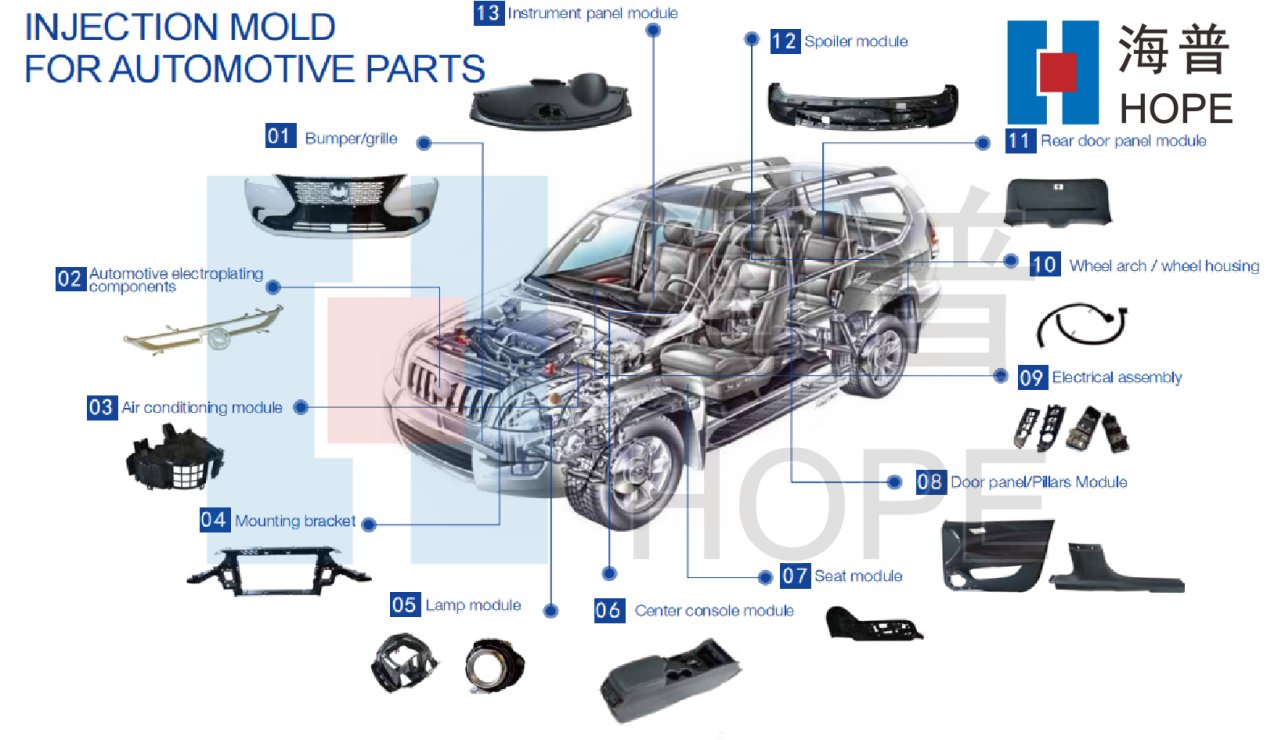

· Instrument panels

· Door trims

· Headlight housings

· Grilles and air vents

Plastic injection moulding offers several benefits. It ensures consistent quality, high production speed, and low material waste. For the automotive industry, where parts must meet strict dimensional and visual standards, this method is both efficient and cost-effective.

3. Step 1: Product and Mould Design

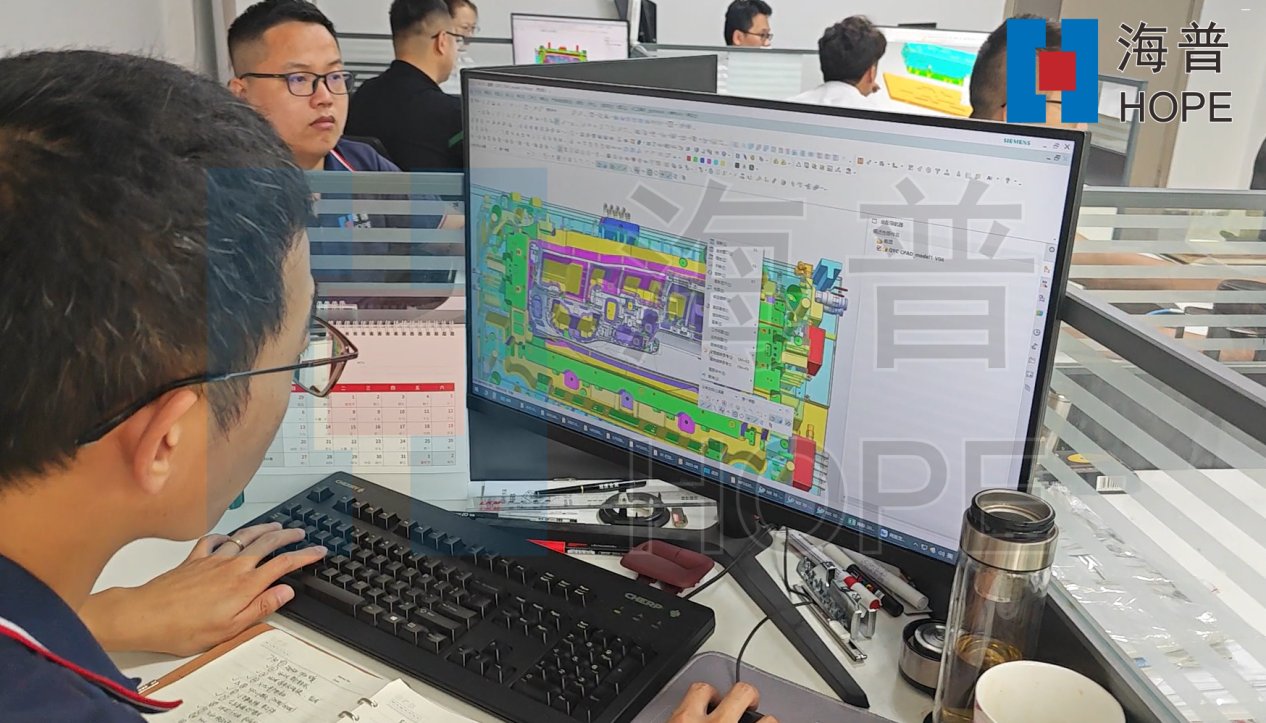

The first stage begins with product design. Engineers use 3D design software such as CATIA, UG (NX), or SolidWorks to create the model of the car part. Once the part design is approved, the mould design starts.

A mould is made of several important components:

· Core and cavity: The main shapes that form the plastic part.

· Runner and gate system: Channels that guide the melted plastic into the cavity.

· Cooling system: Passages that circulate water to control temperature.

· Ejector system: Pins and plates that push out the finished part.

During this stage, engineers perform DFM (Design for Manufacturing) analysis. It helps ensure that the mould can be produced efficiently and that the parts will be free of defects such as warpage, sink marks, or flashing.

At this stage, teamwork between the mould supplier and the customer is very important. Both sides review the 3D models, discuss material options, and confirm gate positions and parting lines. Good communication prevents costly changes later in the project.

4. Step 2: Mould Manufacturing

After the design is approved, the mould manufacturing process begins. A high-quality mould requires both advanced equipment and skilled technicians.

The main steps include:

· Material selection: Usually P20, 718H, or NAK80 steel is used depending on the production volume.

· CNC machining: Shapes the core and cavity with high precision.

· EDM (Electrical Discharge Machining): Creates sharp corners and fine details.

· Polishing and texture: The mould surface is polished or textured based on the appearance of the final part.

· Assembly: All components are fitted together with tight tolerances.

Each step is carefully inspected to ensure accuracy. Even small errors can affect the final product. Precision tools and quality control are used throughout machining to make sure all parts meet the design requirements.

A typical automotive mould may take 6 to 10 weeks to complete, depending on its size and complexity. For very large tools such as instrument panel moulds, the process can take even longer.

5. Step 3: Mould Trial and Testing (T1, T2, T3)

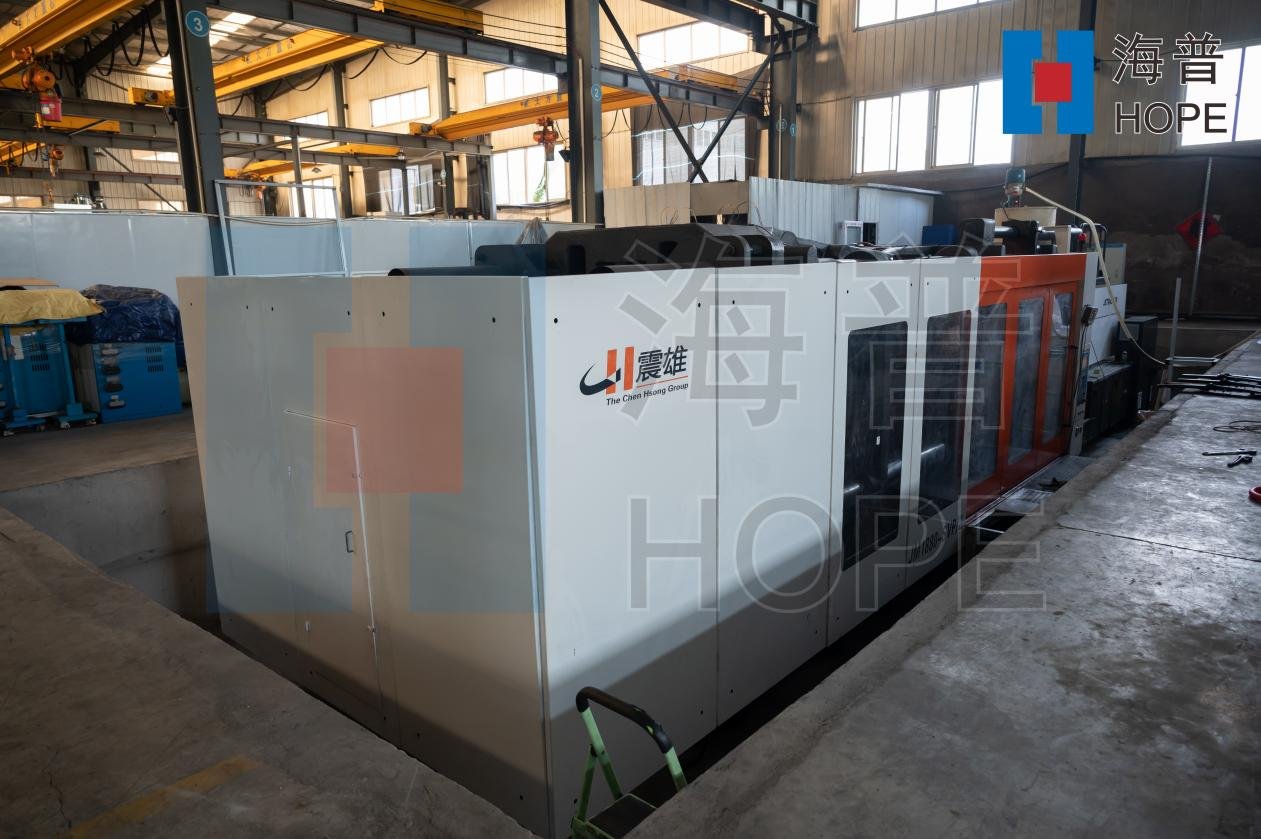

Before production begins, the mould must be tested. This is known as a T1 trial. Engineers install the mould on an injection machine to produce the first samples.

During this trial, they check:

· Part dimensions using CMM inspection

· Surface quality

· Fit and assembly with other components

· Injection parameters such as pressure, temperature, and cooling time

If any problems are found, adjustments are made. Usually, it takes several rounds of trials, called T1, T2, and T3, before the mould is approved for production. The goal is to achieve stable quality and efficiency in mass production.

Once the final sample meets all customer standards, a final approval report is issued along with measurement data and photos. This step confirms that the mould is ready for shipment or full production.

6. Step 4: Mass Production

Once the mould passes the testing stage, it moves to mass production. The injection moulding machine works in cycles, and each cycle can produce one or several parts.

During production, the following factors must stay stable:

· Mould temperature

· Injection pressure and speed

· Cooling time and part removal

Operators or automated robots inspect the parts regularly to ensure consistent quality.

A high-quality automotive mould can produce hundreds of thousands to more than one million parts, depending on the type of steel and the quality of maintenance. Some moulds run continuously for years, producing parts for different vehicle models with only small adjustments.

7. Step 5: Mould Maintenance and Storage

Maintenance is very important for long-term mould performance. After each production run, the mould should be cleaned, lubricated, and checked for wear.

A professional mould supplier provides:

· Maintenance reports after each production run

· Spare parts such as ejector pins or bushings

· Proper storage to prevent rust or damage

With regular care, a well-made mould can last for many years and provide a strong return on investment. Routine maintenance also helps prevent downtime and unexpected repairs, keeping production efficient and cost-effective.

8. Why Quality Matters

In the automotive industry, precision is essential. Even a small deviation, such as 0.05 millimeters, can cause assembly problems or noise in the final vehicle. That is why choosing a reliable mould manufacturer is so important.

A good supplier will:

· Follow automotive quality standards such as IATF 16949

· Provide project management from design to delivery

· Offer engineering support and after-sales service

An experienced mould maker not only builds a tool but also helps customers improve product design, shorten lead time, and reduce cost. Long-term partnerships create better results and more stable production quality.

9. Conclusion

Automotive injection moulds are the foundation of modern car production. From the smallest clip to the largest bumper, every plastic part starts with a carefully designed and precisely built mould.

By understanding the process from design, tooling, testing, to mass production, you can communicate more effectively with your mould supplier and ensure high-quality results.

Every perfect car part begins with a perfect mould.
A reliable mould supplier is not just a manufacturer but a partner who supports your success in the competitive automotive industry.
